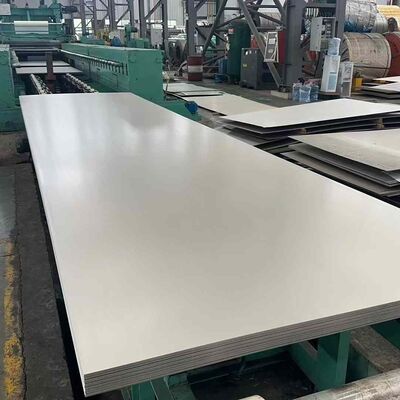

ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm

Orzecznictwo
Chiny JIANGSU MITTEL STEEL INDUSTRIAL LIMITED Certyfikaty
Chiny JIANGSU MITTEL STEEL INDUSTRIAL LIMITED Certyfikaty
Opinie klientów
this is the second order l buy this company ,quality is very good ,same as europure quality .we will go on ccooperate with this company .

—— Andrew Greg - Turkey

200 ton Stainless steel sheet is arrived on 10th Oct 2014 , the quality is very good.,deliver time is very fast It's very lucky we find this factory

—— Mechile Kilar Chard - Brazial

We Have Cooperate With this Factory Many Years , Everything Goes Very Well.l Like This Factory !

—— Tony Hilton - Poland

This is Our Thrid Time Buy from Mittel,Quality is Very Goods ,We Are Glad to Find This Reliable Factory

—— Natalya Ugay-Russia

Quality is very good and delivery time very fast ,we want to do long terms business with this company

—— Pongpol Pluemsati-Thailand

Im Online Czat teraz

ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm

ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm
ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm

Duży Obraz :  ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm

Szczegóły Produktu:
Miejsce pochodzenia: Chiny Wuxi
Nazwa handlowa: BAO STEEL MITTEL TISCO
Orzecznictwo: SGS ISO MTC
Numer modelu: Incoloy 825
Zapłata:
Minimalne zamówienie: 100kg
Cena: 15-26 USD/KG
Szczegóły pakowania: Drewniane palety
Czas dostawy: 7 dni roboczych
Zasady płatności: Akredytywa, T/T
Możliwość Supply: 80000 kg

ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm

Opis
Tworzywo: Metal, stal nierdzewna Kształt: Płaski
Aplikacja: Architektura krajobrazu, dekoracja ogrodu wewnątrz i na zewnątrz Stosowanie: Dekoracje ogrodowe, sadzenie kwiatów i roślin, na zewnątrz, w biurze
Grubość: 1-3 mm, 1,0 mm lub dostosowane szerokość: 100-2000 mm
Podkreślić:

ASTM B424 nickel alloy plate

,

Incoloy 825 stainless steel plate

,

UNS N08825 alloy plate 6x1219mm

ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm

Specification And Material Grade Of Incoloy 825 Plate

ASME/ASTM Name ASTM B424 / ASME SB 424
size in mm 2000 mm x 4000 mm, 1220 mm x 2440 mm, 1000 mm x 2000 mm, 2000 mm x 2000 mm, 1500 mm x 3000 mm,
Thickness of Standard Plate 0.1 to 12 mm Thick
Most Frequently Used Form Strip, Flats, Rolls, Ring (Flange), Coils, Foils, Shim Sheet, Blank (Circle), Plain Sheet
Different Finish Cold rolled sheet (CR), 2B, Hot rolled plates (HR), BA NO(8), SATIN (Met with Plastic Coated), 2D,
Hardness Range Half Hard, Soft, Quarter Hard, Spring Hard, Hard etc



Minimum Yield Strength Chart Of Astm B424 UNS N08825 Strip

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
825 8.14 g/cm3 1400 °C (2550 °F) Psi – 80,000 , MPa – 550 Psi – 32,000 , MPa – 220 30 %



Chemical Structure Of 2.4858 Coils

Grade C Mn Si S Cu Fe Ni Cr Al Ti
825 0.05 max 1.00 max 0.5 max 0.03 max 1.50 – 3.00 22.00 min 38.00 – 46.00 19.50 – 23.50 0.02 max 0.06 – 1.20



Equivalent Table Of JIS NCF 825 Plates

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Incoloy 825 2.4858 N08825 NCF 825 NA 16 ЭП703 NFE30C20DUM NiCr21Mo

ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm 0ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm 1ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm 2 ASTM B424 / ASME SB 424 UNS N08825 Incoloy 825 Nickel Alloy Plate 6*1219mm 3



FAQ

What types of high-temperature alloy products do you offer?
We offer high-temperature alloy rods, wires, strips, plates, tubes, bolts, and nuts. Our products cover various specifications and sizes to meet different application needs.

How to choose the right high-temperature alloy material?
Choosing the right high-temperature alloy material requires a comprehensive consideration of factors such as the temperature, corrosiveness, and mechanical strength requirements of the specific application environment. Our engineers can provide professional advice to help you select the most suitable material.

What international standards do your high-temperature alloy products meet?
Our products meet international standards such as ASTM, AMS, GB/T, ensuring product quality and reliability.

Can you customize products according to customer requirements?
Yes, we offer customized services based on the specific needs of our customers, including special specifications and performance requirements.

What are your production processes and quality control like?
We use advanced production processes and a strict quality control system. From raw material procurement to the final product shipment, every step is carefully monitored to ensure the product quality meets the standards.

Can you provide samples?
Yes, we can provide samples according to your requirements.
